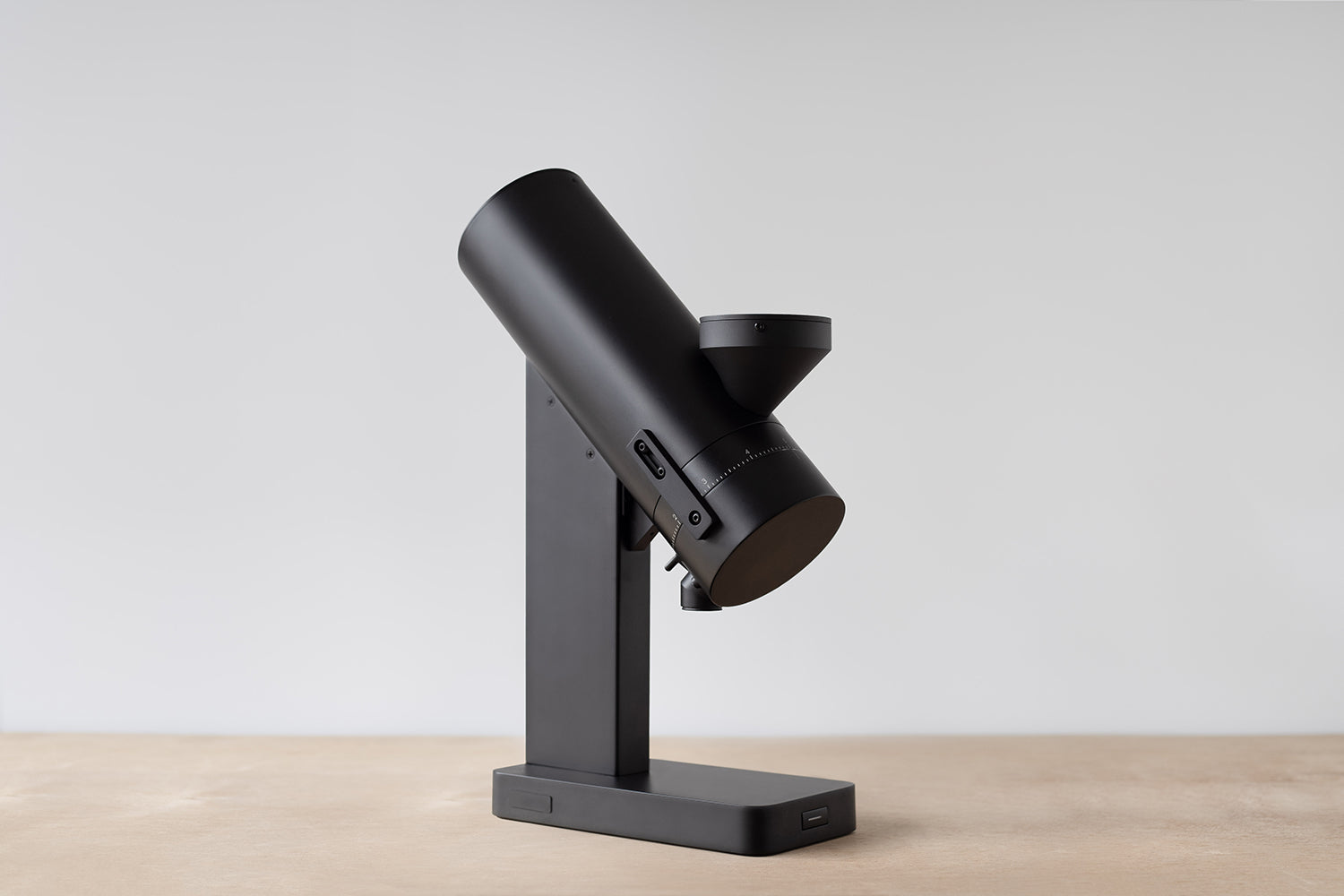

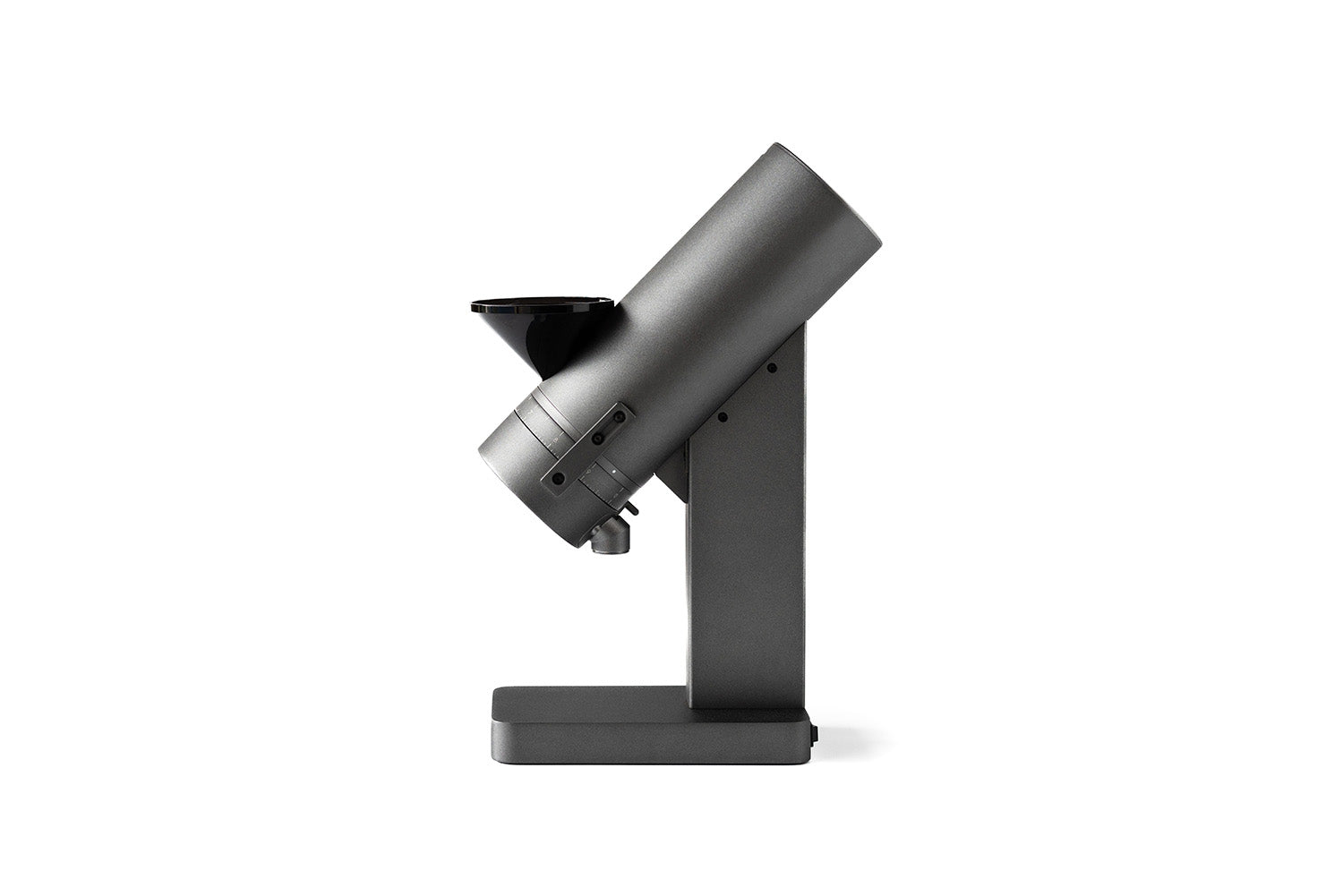

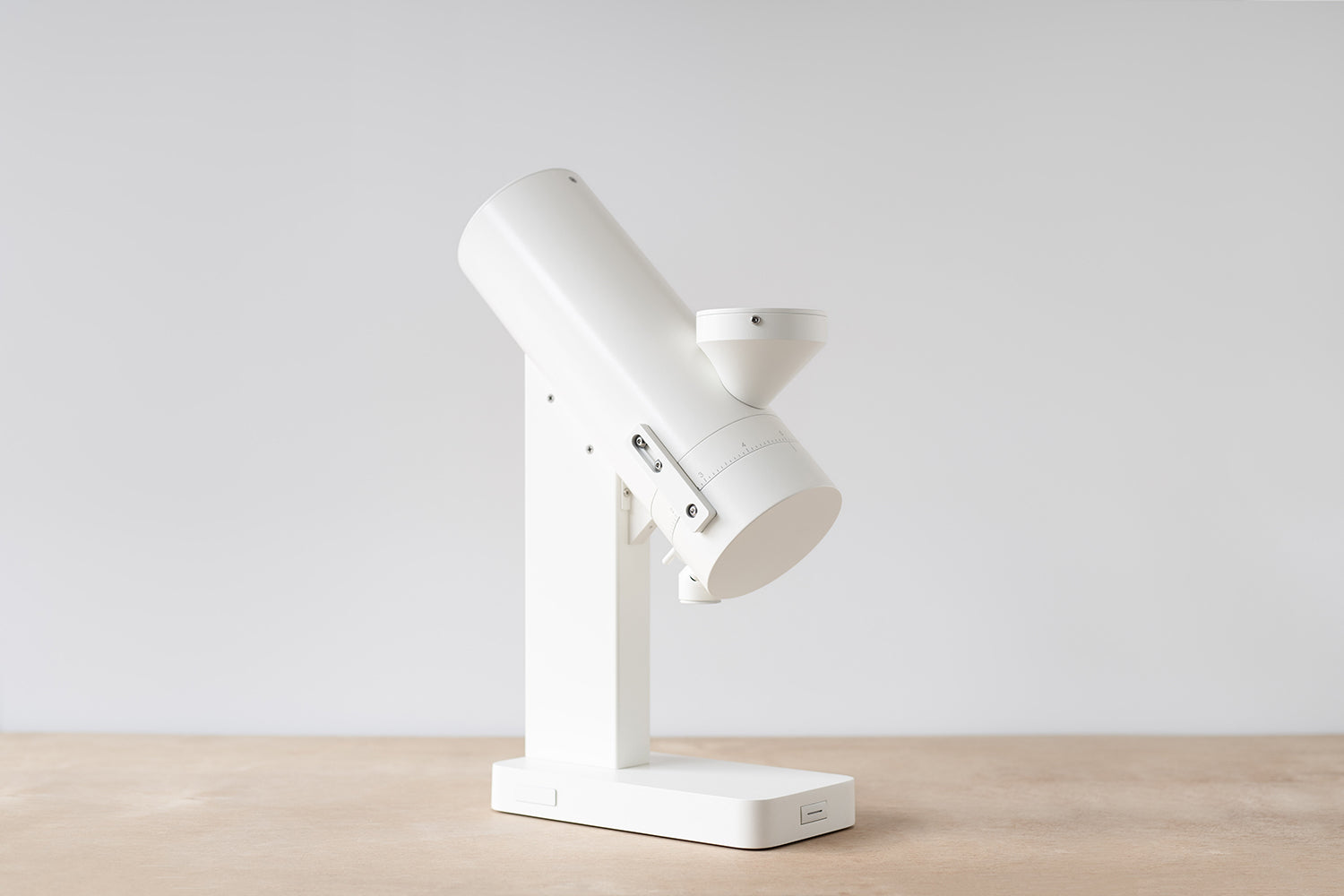

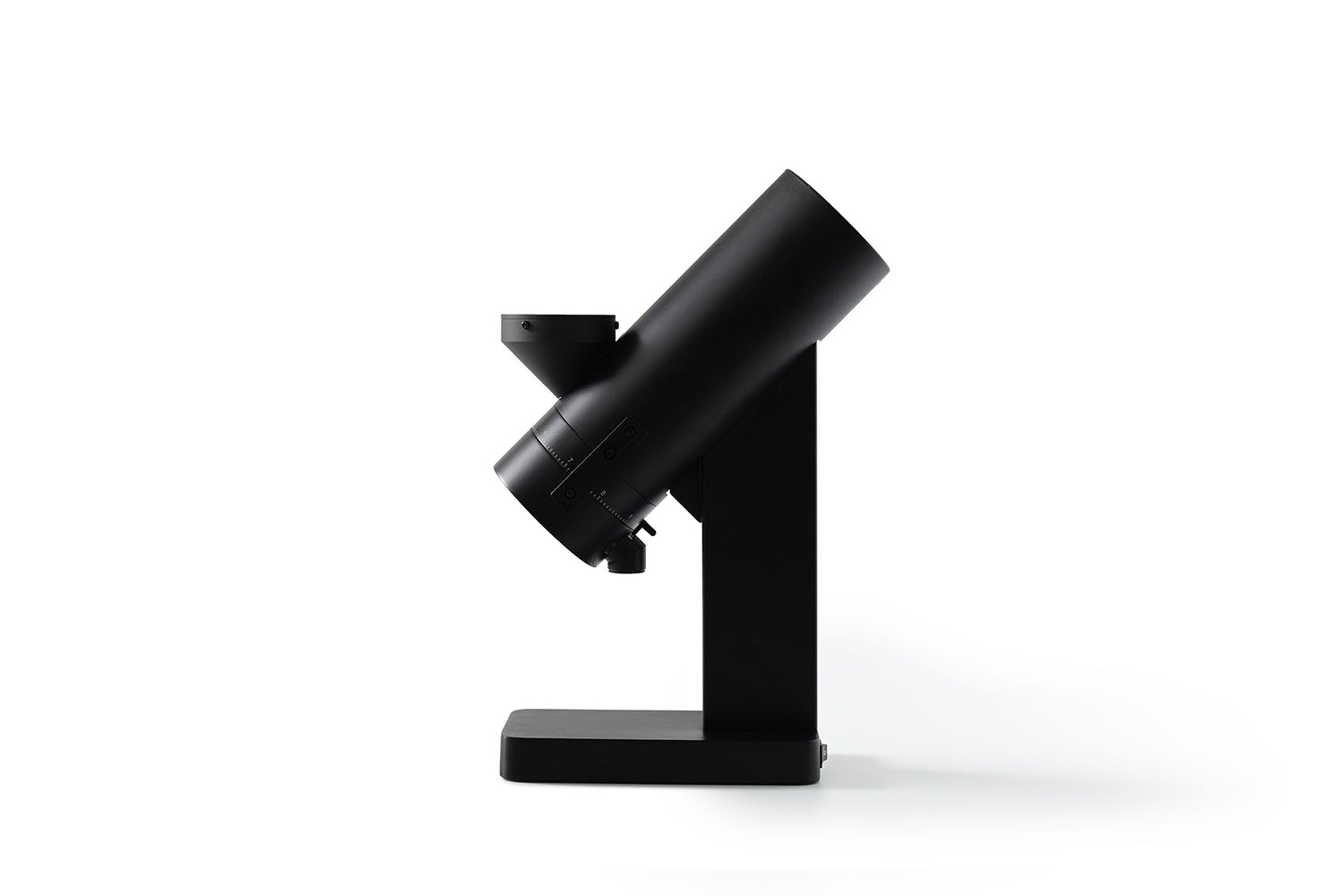

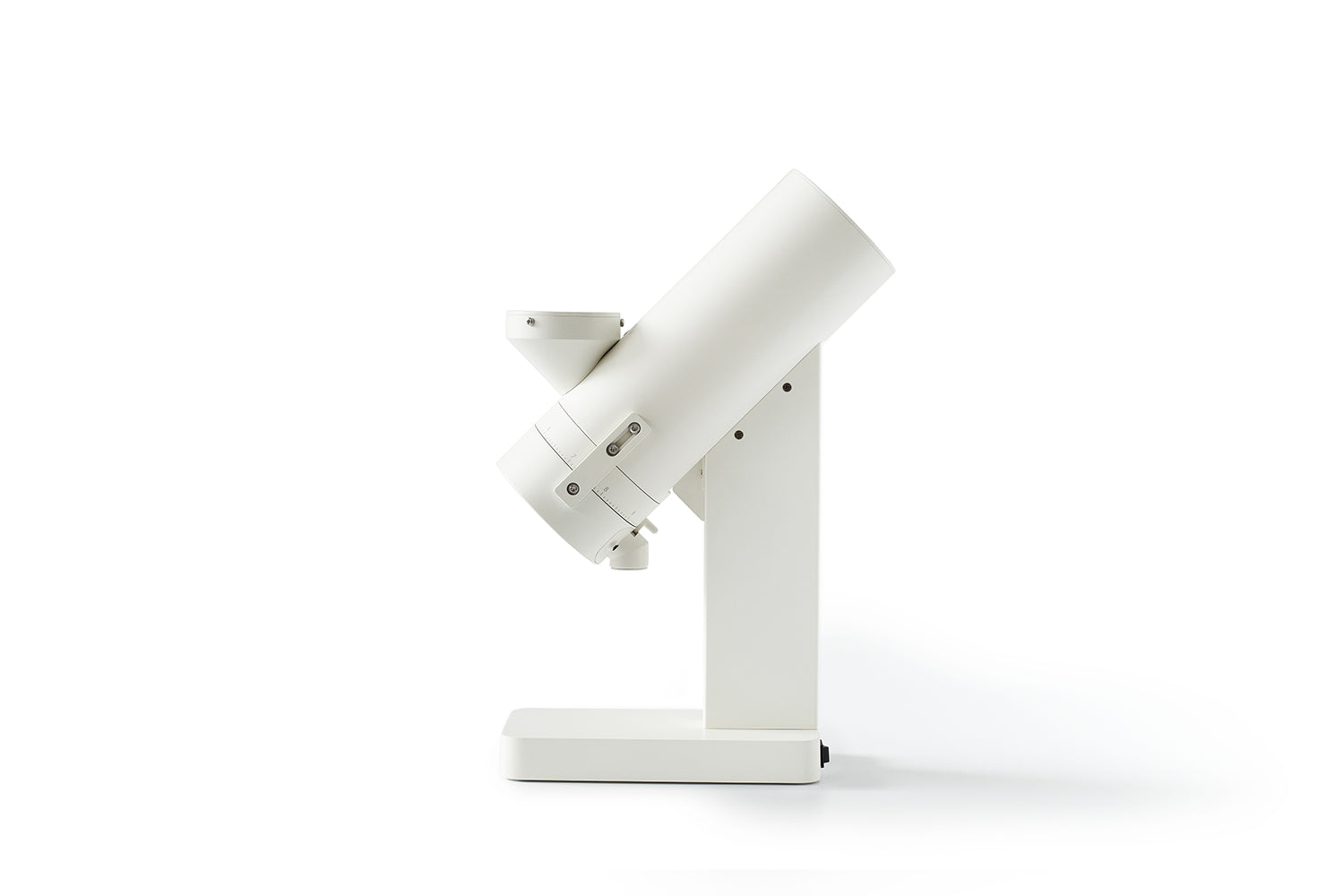

Orbit

€1.690,00 – €1.875,00

Smart 64 mm flat burr grinder with unique features to elevate your coffee experience

Mazzer 0033MMazzer 0033M
SSP Multi-PurposeSSP Multi-Purpose
€1.690,00
Description

Our first-ever coffee grinder, the Orbit lands with unique features to meet your coffee brewing needs. The grinder is single-dosing friendly with features like an automatic cleaning purge that helps to reduce retention when grinding. If you prefer to pair with an Acaia Lunar, you can also activate Orbit’s grind by weight function and enjoy an effortless dosing experience. It is built and designed with Acaia’s proprietary technology from the motor driver to the companion app, offering advanced control of RPM and overall energy savings.

Model

AOT004 / AOT005

Product Weight

5600 g ± 10 g

Product Dimensions

W: 108 mm L: 266 mm H: 394 mm

Rated Voltage

100 V-240 V

Frequency

50/60 Hz

Motor

200 W Brushless DC Motor

Material

Aluminum, PC, Stainless Steel

Warnings CA Prop 65 Warning
Operating Ambient Temperature

0 - 40 °C

RPM Profile

600-1500 Adjustable RPM Profile

Duty Cycle

Recommended duty cycle for Orbit
is 60 s running time with a rest time of 30 s

Connectivity

Bluetooth 5.0

Warranty

1 Year

Inside the
Package

Acaia Orbit Coffee Grinder x 1

Power Cable x 1

Spout Extender x 1

58 mm Portafilter Dosing Cup (M) with Magnetic Pad x 1

Lunar Magnetic Strip x 2

Lunar Magnetic Strips Application Tool x 1

The Orbit was designed in partnership with Weber Workshops and based on the successful design of the EG-1 grinder. We appreciate Weber’s guidance and advice during this process. Acaia is solely responsible for developing the grinder technology, manufacturing, selling, and managing after-sales product support.

Single-dose

Weigh your whole beans and grind with minimum
retention. Pull a perfect shot without waste.

Grind-by-Weight

Connect your Lunar scale to the Orbit. Grind
precisely the right amount every time.

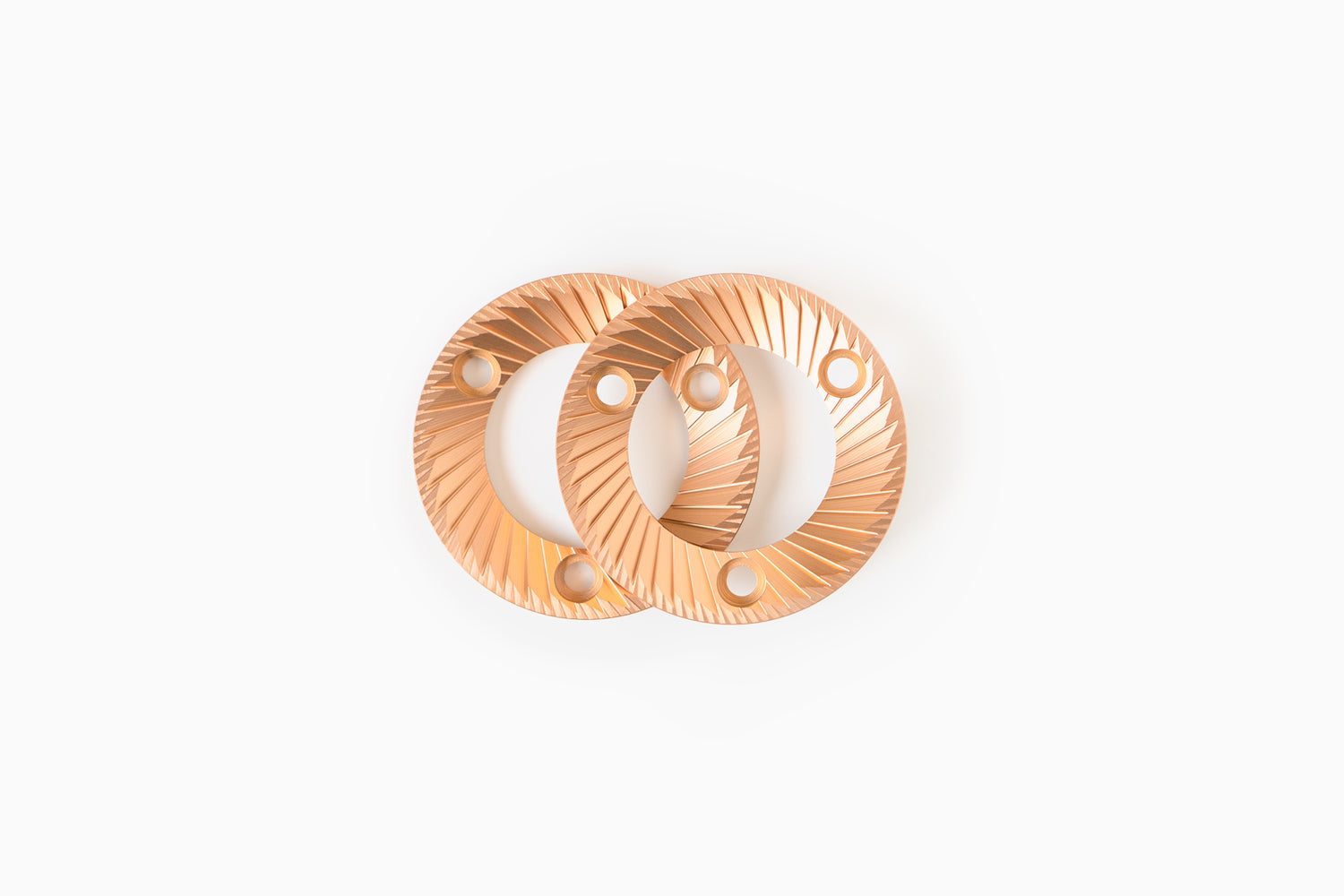

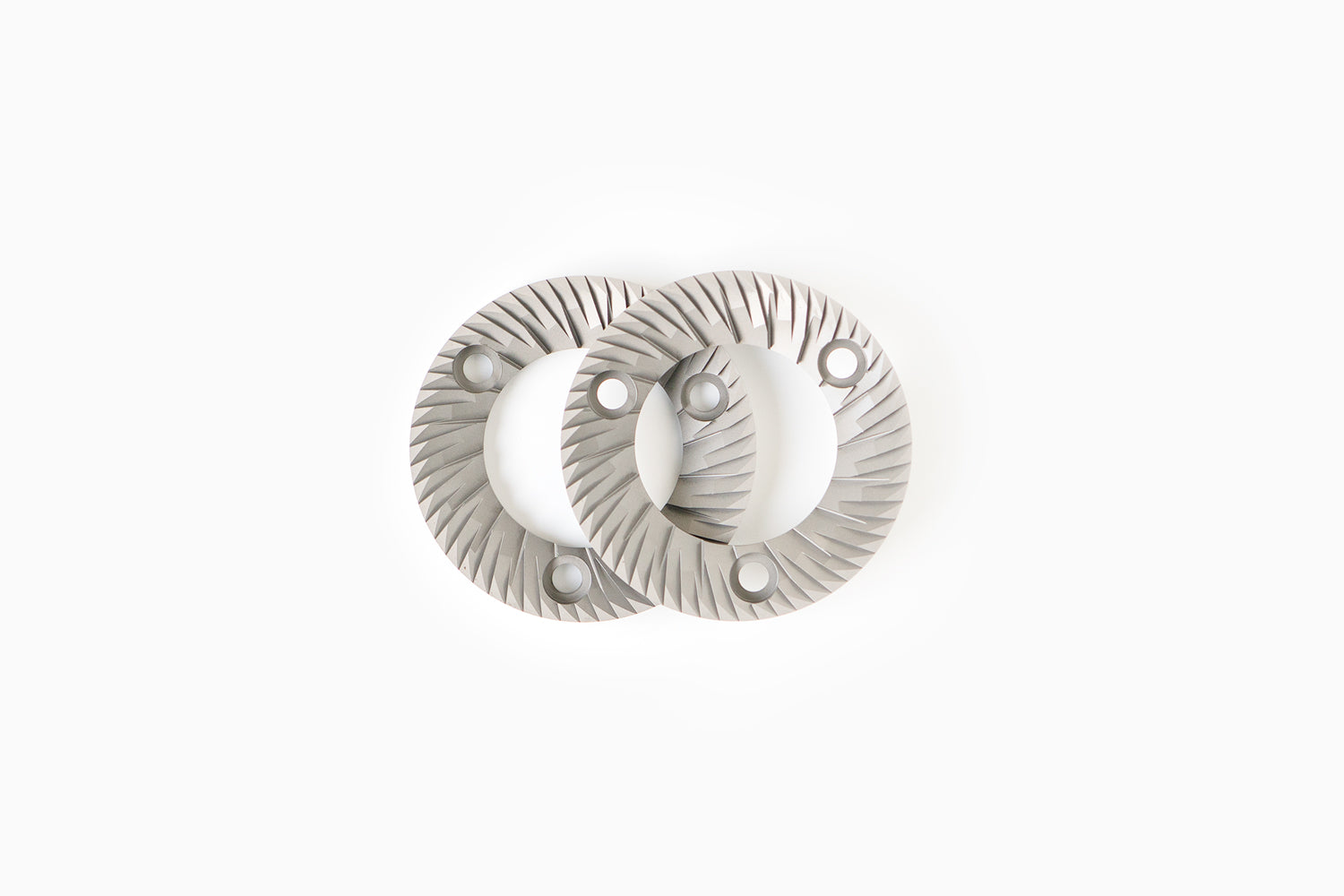

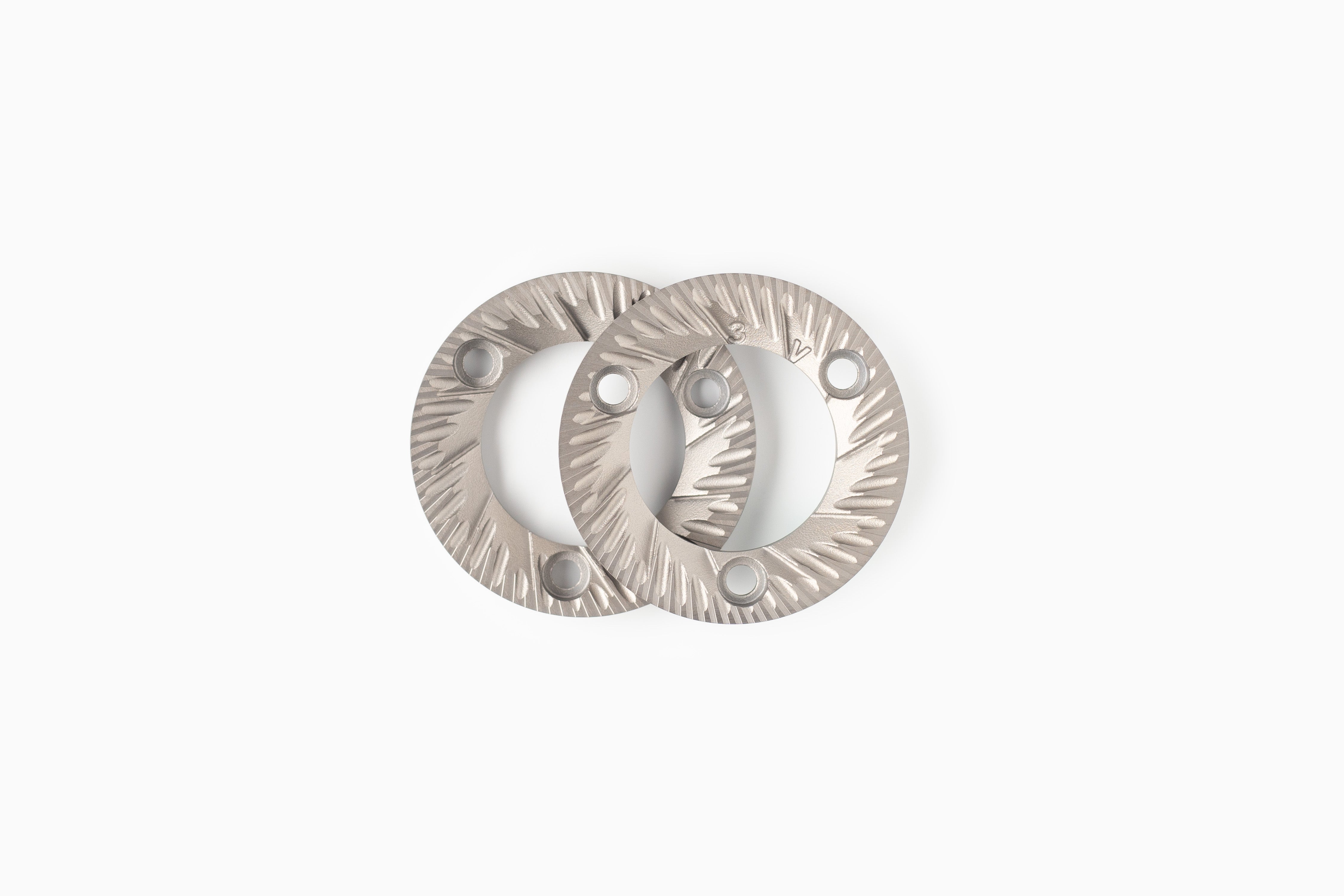

64 mm burrs

Select from Mazzer 33M burrs for classic espresso and
balanced filter coffee brewing, or SSP Multipurpose burrs
for high clarity brews and modern espresso.
Additional burr options available soon.

Stepless adjustment

Orbit’s 0.75 mm thread pitch allows you to dial in
your shot precisely, from light roast to dark roast coffee.

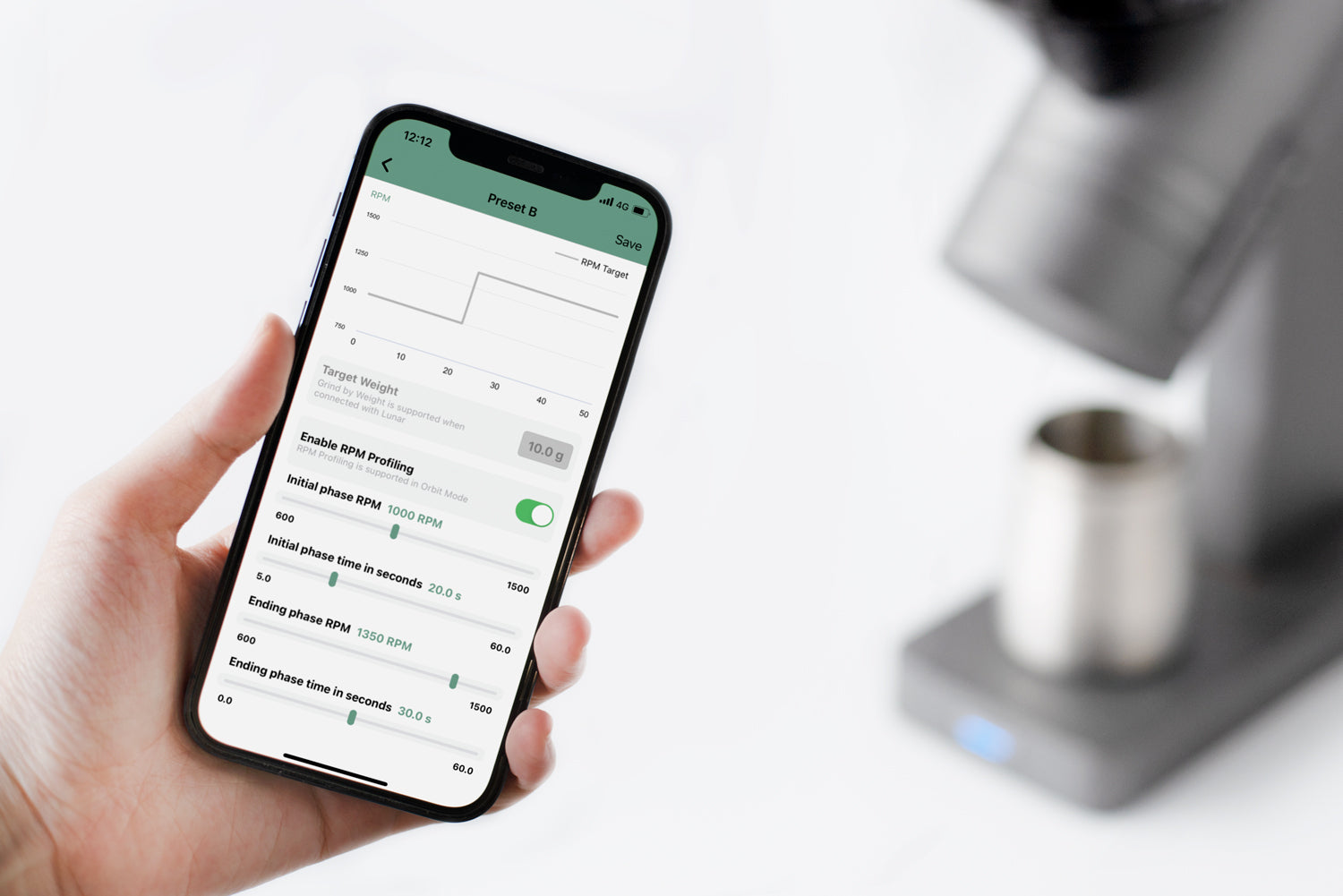

Personalize your Orbit

Use the Orbit companion app to customize your grinding
experience: adjust the grind speed between 600-1500 RPM,
swap the Orbit button actions, save profiles for grind by
weight or grind by time, and more.

Energy Efficient

Acaia believes that it is our social responsibility to be
conscious of environmental impact. Developed with
our in-house technology over the years, the Orbit is built
to reduce energy consumption and yet deliver
industrial high performance and smarter grinding.

Orbit Tolerances

All Orbit parts are individually measured during the quality
control process. This is to ensure they meet our precise
standards and allow for the best burr alignment. For
example, our grindersmust meet or exceed the following:

Burr mounting surfaces - 10 microns in flatness
Motor drive shafts - 20 microns in concentricity
Other critical parts - 20 micron tolerances

Burr Alignment

After assembly, our team test each grinder to ensure proper functionality, alignment, and grind quality. We use optical
imaging software to evaluate ground coffee during testing
for an expected level of uniformity, we measure the distance
between the burr lock point and burr touch point. Acceptable distances are < 1.5 marks for Mazzer 33M burrs and < 1 mark
for SSP Multipurpose burrs.

Single-dose

Weigh your whole beans and grind with minimum retention. Pull a perfect shot without waste.

Grind-by-Weight

Connect your Lunar scale to the Orbit. Grind precisely the right amount every time.

64 mm burrs

Select from Mazzer 33M burrs for classic espresso and balanced filter coffee brewing, or SSP Multipurpose burrs for high clarity brews and modern espresso. Additional burr options available soon.

Stepless adjustment

Orbit’s 0.75 mm thread pitch allows you to dial in your shot precisely, from light roast to dark roast coffee.

Personalize your Orbit

Use the Orbit companion app to customize your grinding experience: adjust the grind speed between 600-1500 RPM, swap the Orbit button actions, save profiles for grind by weight or grind by time, and more.

Energy Efficient

Acaia believes that it is our social responsibility to be conscious of environmental impact. Developed with our in-house technology over the years, the Orbit is built to reduce energy consumption and yet deliver industrial high performance and smarter grinding.

Orbit Tolerances

All Orbit parts are individually measured during the quality control process. This is to ensure they meet our precise standards and allow for the best burr alignment. For example, our grinders must meet or exceed the following:
Burr mounting surfaces -
10 microns in flatness
Motor drive shafts -
20 microns in concentricity
Other critical parts -
20 micron tolerances

Burr Alignment

After assembly, our team test each grinder to ensure proper functionality, alignment, and grind quality. We use optical imaging software to evaluate ground coffee during testing for an expected level of uniformity. For burr alignment, we measure the distance between the burr lock point and burr touch point. Acceptable distances are < 1.5 marks for Mazzer 33M burrs and < 1 mark for SSP Multipurpose burrs.

INSIDE THE PACKAGE

Below are the items you will receive when you order the Orbit

Orbit
Coffee Grinder

Power Cable

Spout Extender

58 mm Portafilter
Dosing Cup with
Magnetic Pad

Lunar
Magnetic Strips

Lunar
Magnetic Strips
Application Tool

Care and Cleaning

Do not immerse the Orbit or its parts in water. Use a soft cloth with warm water only to clean the product.
Do not use detergent or other chemicals for cleaning as it can damage the product.
